Modular LED Lighting System for Professional Applications
Connecta delivers predictable performance in demanding professional environments. Rather than functioning as a conventional LED strip, it operates as a structured lighting system designed for electrical stability, clean installation and long-term reliability.
Who is Connecta designed for?
Connecta is developed for professionals who require predictable performance, electrical safety and clean installation. Unlike decorative lighting solutions, it is designed for controlled applications where reproducibility and system stability are essential.
- Furniture manufacturers and cabinet makers
- Interior fit-out & contract companies
- Lighting designers & interior architects
- Serial & small-batch production
Not intended for DIY projects, hobby installations or low-cost decorative lighting.
Trusted components
Why professionals choose a modular LED lighting system?
- No voltage drop on long runs (power injection every 0.5 m)
- No soldering, no installation risk (Kyocera connectors)
- Predictable electrical behavior (Infineon constant-current regulation)
- Uniform light quality (±3% across length)
- Designed for production and repetition (0.5 m architecture)
- Reduced maintenance and callbacks (protection + thick copper PCB)
Engineering That You Can See
Connecta is built like a professional lighting system—not a commodity strip. Explore the core technologies that deliver stable brightness, longer lifetime, and easier installation.

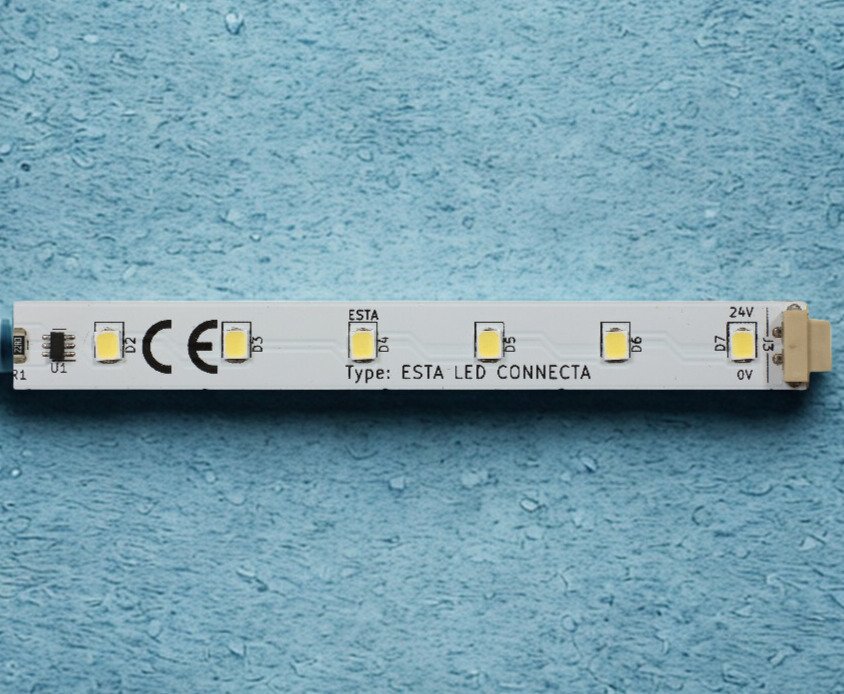

Thick Copper
Thick Copper
0.105 mm Copper for Stable Light
Thick copper conductors reduce internal resistance—helping minimize voltage drop and heat. That means more consistent brightness along the installed length.

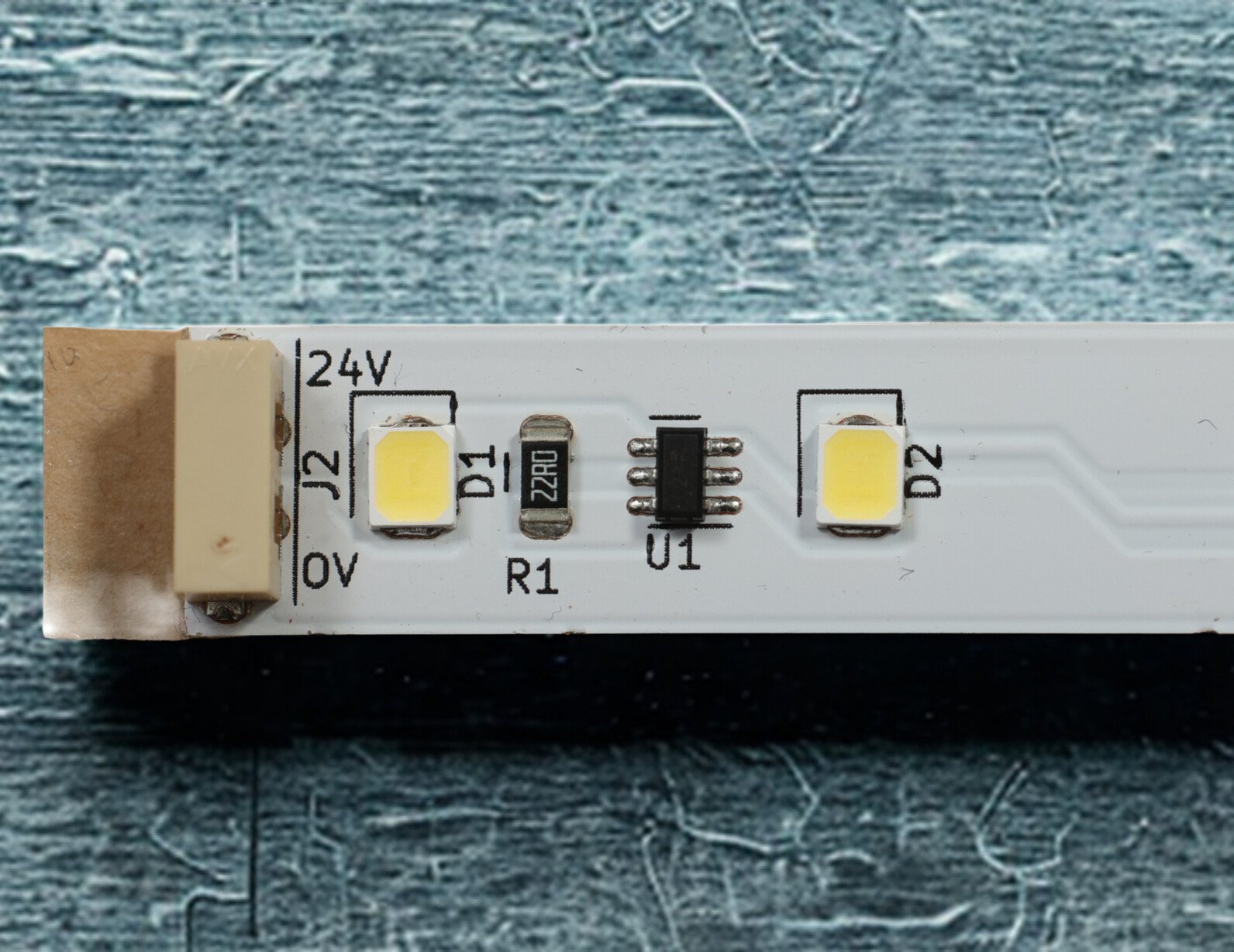

Constant Current
Constant Current
Infineon IC: 60 mA Constant Current
Each segment is controlled for stable current—helping protect LEDs from supply variation and improving lifetime. The result: predictable light output and fewer “overdrive” failures.

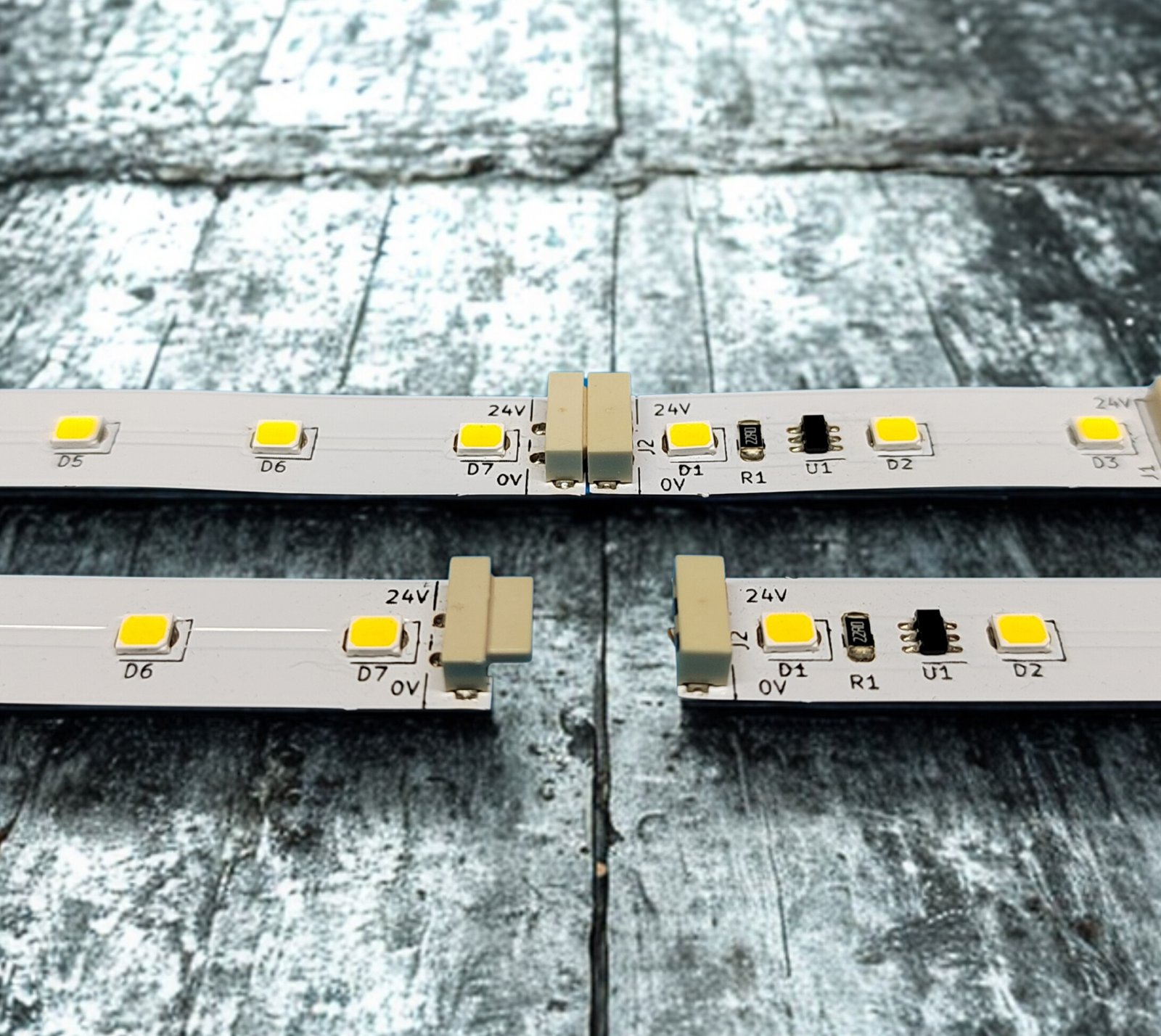

Kyocera Link
Kyocera Link
Kyocera Connectors for Segment-to-Segment Linking
Built-in continuation connectors allow you to extend the strip cleanly and reliably— no fragile solder joints for basic runs.
Power Feed
Power Feed
Power Connector on Every Segment
Each 0.5 m segment includes a dedicated power connector—so you can inject power where it matters to keep brightness uniform.

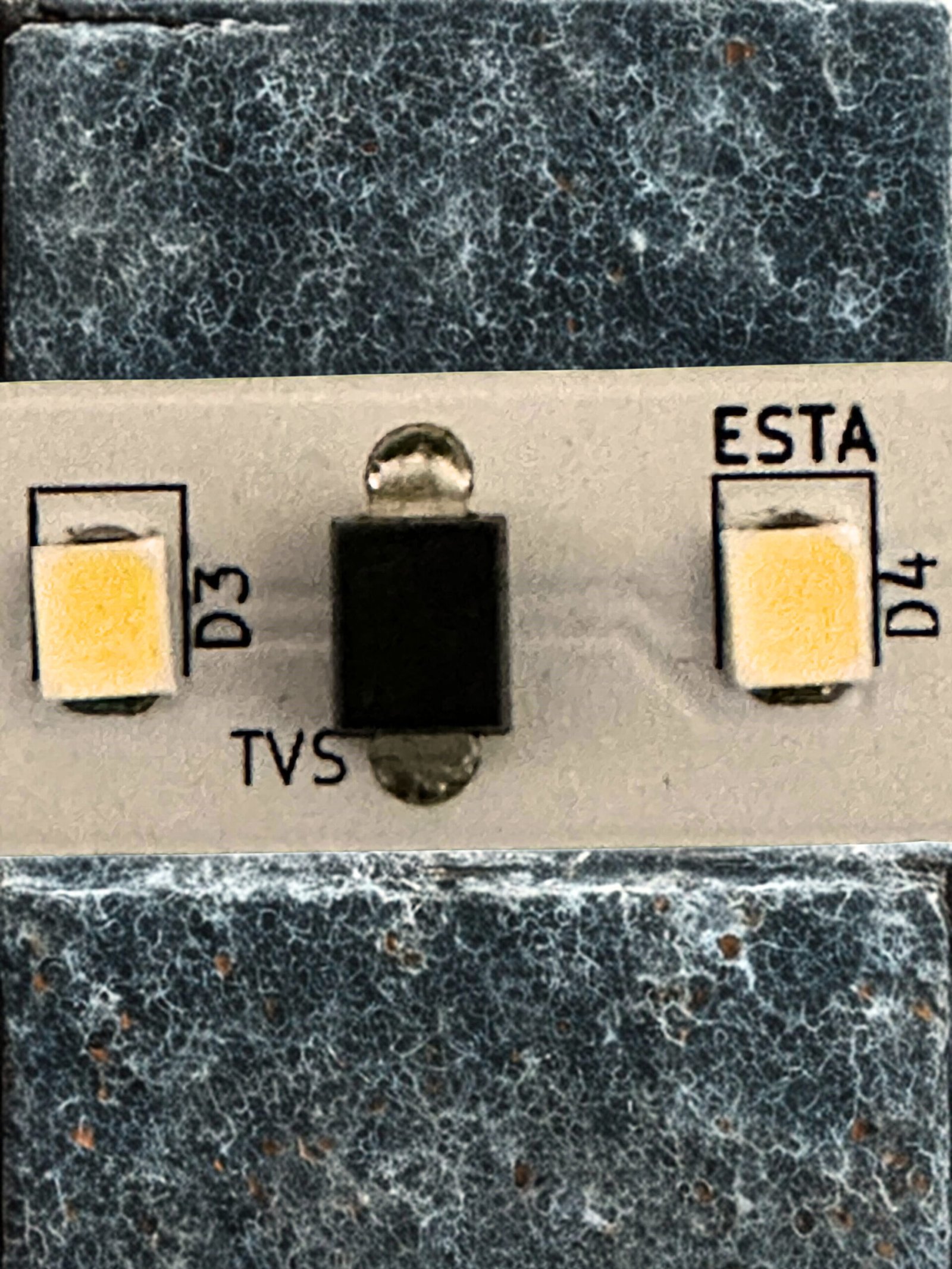

Surge Protection
Surge Protection
Integrated Surge Protection Diode
Protection components help reduce the risk of damage from transient overvoltage events— improving reliability in real installations.
165 lm/W
165 lm/W
Efficiency Class C/D • Up to 165 lm/W
High luminous efficacy means you get more light per watt—reducing power usage while keeping output strong.
Engineered for Precision & Endurance
Connecta LED is not just a strip light; it's a professional-grade lighting system. Every component is selected and engineered to deliver unmatched stability, longevity, and ease of installation.
Precision Current Control
Infineon ICs ensure every LED receives exactly 60mA of constant current. This eliminates overheating, prevents brightness drop-off, and guarantees a rated lifetime exceeding 50,000 hours.
Modular by Design
Our unique "Klick & Light" system with integrated connectors allows easy extension and power injection every 0.5m. No soldering needed. Build any length with perfectly uniform brightness.
Superior Energy Efficiency
With genuine OSRAM Duris LEDs delivering up to 165 lm/W and thick 105µm copper substrate, Connecta achieves energy class C. More light per watt, less waste heat, lower operating costs.
Built-in Circuit Protection
Every 0.5m segment includes ESD protection diodes. This safeguards the strip from voltage spikes and transient events, ensuring reliable operation in real-world conditions.
Technical Excellence in Every Detail
Connecta LED strips are engineered with premium components and advanced technology. Below are the complete specifications that set our product apart from conventional LED strips.
Design & Construction
LED Technology
Original OSRAM Duris S5 (2835)
CRI >80 (EM) / >90 (CM)
165 lm/W efficiency
PCB & Substrate
Flexible FR4 with 105µm (3oz) copper
10mm width, 1mm thickness
White solder mask
Modular System
0.5m segments with IP-rated connectors
Power injection points every 0.5m
Cuttable every 10cm (7 LEDs/segment)
Electrical & Performance
Power & Voltage
24V DC operation
14.4W per meter (7.2W per 0.5m)
Constant current: 60mA per segment
Light Output
2050 lm per meter (1025 lm per 0.5m)
70 LEDs per meter (2835 package)
Uniform brightness (±3% across length)
Current Control
Infineon constant-current IC
Individual segment regulation
ESD protection diodes included
Reliability & Compliance
Lifetime & Durability
>50,000 hours rated lifetime
L70/B50 at 25°C ambient
Operating temp: -20°C to +45°C
Certifications
CE marked (EU compliance)
RoHS compliant
ESD protected (2kV HBM, Class 2)
Energy Rating
Energy class C (DURIS EM)
Energy class D (DURIS CM)
IP10 rating (basic protection)
Installation & Use
Mounting & Adhesive
Original 3M VHB double-sided tape
Pre-applied for easy installation
Clean, dry surface required
Connection System
"Klick & Light" plug-and-play connectors
No soldering required
Waterproof IP67 connectors available
Recommended Use
Indoor architectural lighting
Cabinet, shelf, and covelighting
Commercial display and accent lighting
Max Run Length
Unlimited with power injection
Recommended: 5m per 24V/5A driver
Longer runs with multiple power feeds
Engineered to Last. Designed to Save.
Upgrade to Connecta LED and experience lighting that doesn't compromise. Our strips deliver perfectly uniform brightness across any length, eliminate wasted energy as heat, and are built with premium OSRAM components for a lifetime exceeding 50,000 hours. The initial investment pays for itself through significant energy savings and zero maintenance costs.
